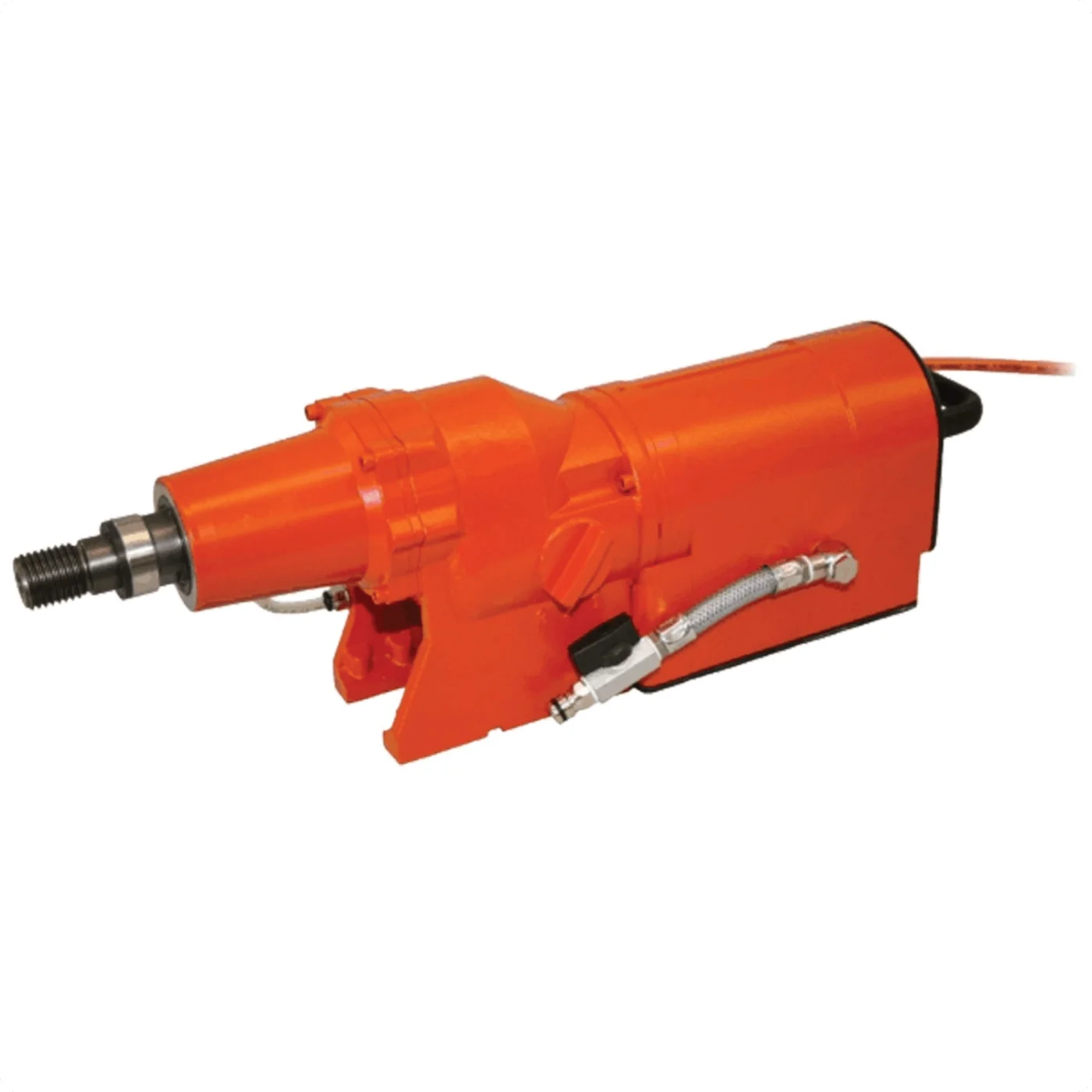

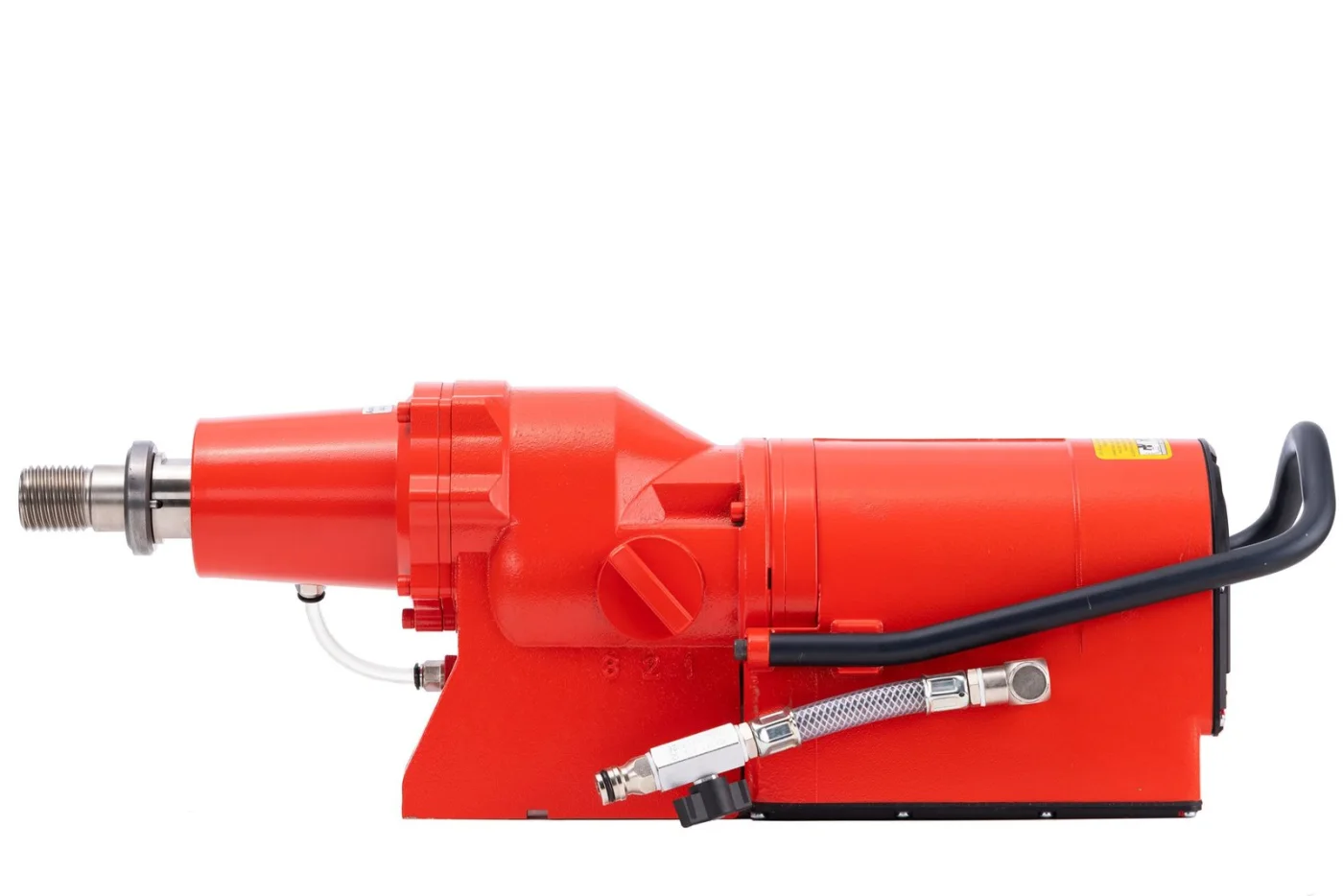

Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted
$8,556.17
Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted is part of our core drill motors selection from Weka.
- Voltage: 480V
- Equipment type: Core Drill
Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted
Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted is part of our core drill motors selection from Weka.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 480V power/drive requirement captured for jobsite planning
- 26" drilling or boring capacity for selecting the right bit and setup
- 15 speed range or gearbox detail supports bit-size control
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Site utility or fuel: 480V
- Handling reference: 13 lb
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Weka |
|---|---|
| Equipment type |
Core Drill |
| Amperage |
14 AMP |
| Power Phase |
3PH |
| Recommended Bit Diameter |
5" – 24" |
| Tool Mount |
Rig-Mounted |
| Wet/Dry Use |
Wet |
| Model # |
SR75S |
| Product Type |
Core Drill |
| Product Subtype |
Drill Motor |
| Product Mount |
Rig-Mounted |
| Engine/Motor |
Electric Motor |
| Horse Power |
7.5 HP (7500W) |
| Voltage |
480 V |
| Variable Speed |
15-Speed |
| Drilling Depth per Pass |
User-Dependent |
| Spindle Features |
1.250"-7 |
| Weight (lbs) |
13 lb |
| Shipping Weight |
51.9 |
| Leveling Bubbles |
2 |
| Compact Design |
Yes |
| Applications |
Concrete, Masonry, Stone |
| Dry/Wet |
Wet |
| Power Compatibility |
Standard Electric Supply |
| Product Warranty |
1 Year |
| Store Title |
Weka SR75S Core Drill 26″ – 14AMP |
| Nominal Power |
7500 W |
| U.S. Configuration |
480 V, 3 ph, 14 AMP |
| Number of Gears |
15 |
| Spindle Thread |
1.250"-7 |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Electric |
| Drilling diameter |
26 in |
| Phase |
Three phase |
