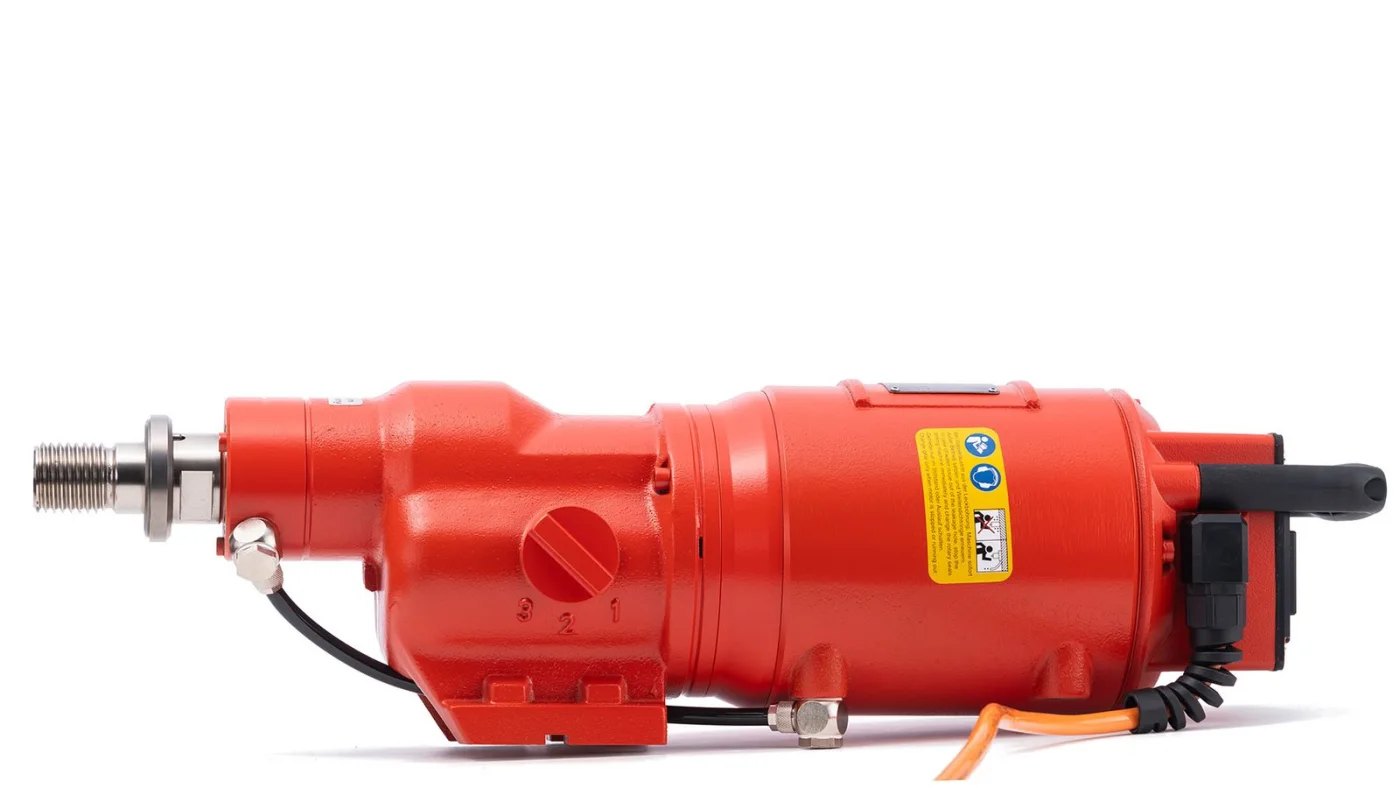

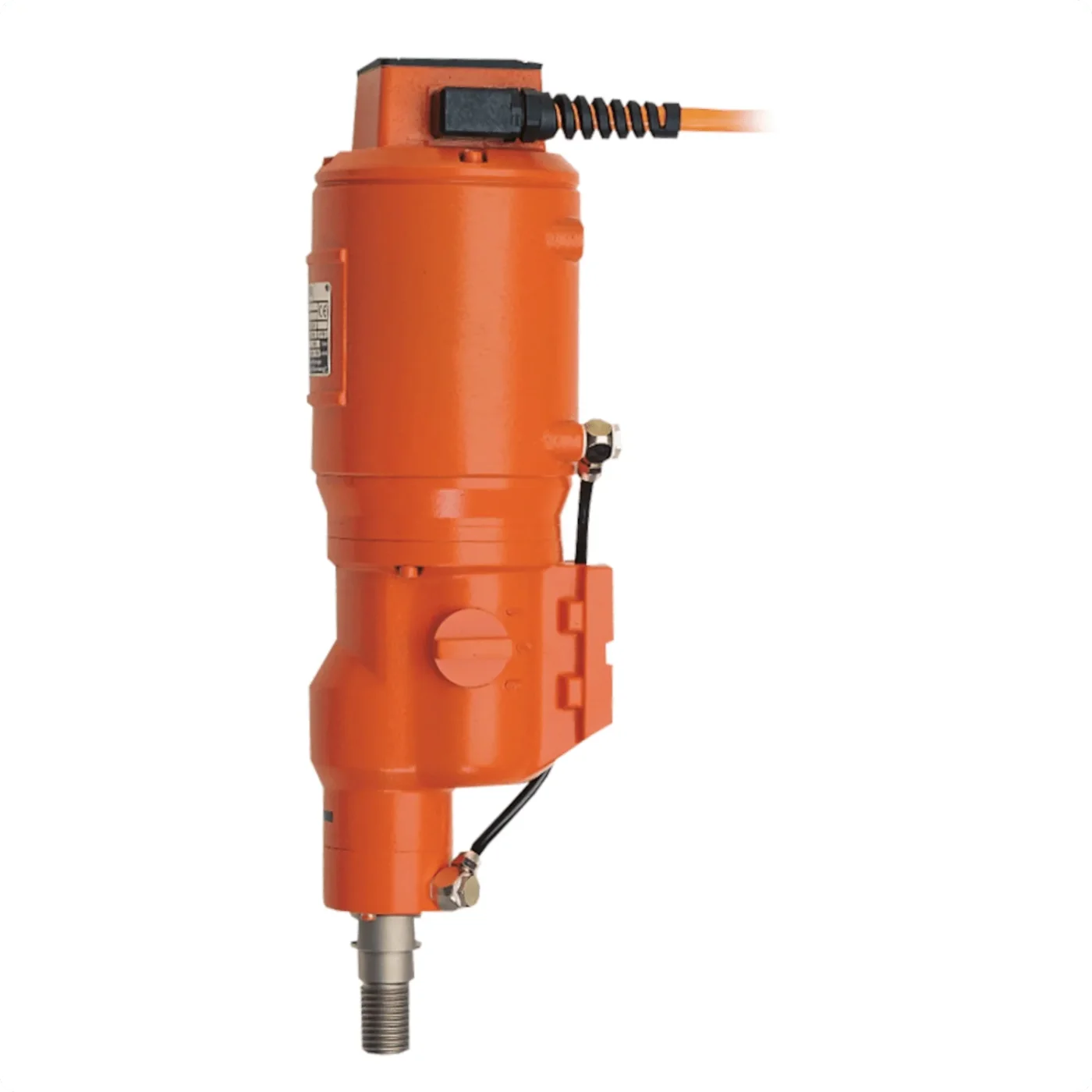

WEKA DK42 Core Drill Motor
$5,317.00
WEKA DK42 Core Drill Motor is part of our core drill motors selection from Weka.
- Voltage: 230V
- Equipment type: Core Drill
9 in stock
WEKA DK42 Core Drill Motor
WEKA DK42 Core Drill Motor is part of our core drill motors selection from Weka.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 230V power/drive requirement captured for jobsite planning
- <=20" drilling or boring capacity for selecting the right bit and setup
- 630 RPM speed range or gearbox detail supports bit-size control
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Site utility or fuel: 230V
- Handling reference: 13 lb
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Weka |
|---|---|
| Equipment type |
Core Drill |
| Tool Mount |
Rig-Mounted |
| Available Variants |
DK42 230 V 3PH; DK42 460 V 3PH |
| Model # |
DK42 |
| Product Type |
Core Drill |
| Product Subtype |
Drill Motor |
| Product Mount |
Rig-Mounted |
| Engine/Motor |
Electric Motor |
| Horse Power |
Heavy Duty |
| Voltage |
230 V |
| Amperage |
13 AMP |
| Power Phase |
3PH |
| Variable Speed |
3-Speed |
| Speed 1 Max RPM |
200 RPM |
| Speed 2 Max RPM |
420 RPM |
| Speed 3 Max RPM |
630 RPM |
| Max Speed RPM |
630 RPM |
| Recommended Bit Diameter |
3" – 18" |
| Drilling Depth per Pass |
User-Dependent |
| Spindle Features |
1.250"-7 |
| Weight (lbs) |
13 lb |
| Shipping Weight |
49.5 |
| Clutch |
Slip |
| Compact Design |
Yes |
| Applications |
Concrete, Masonry, Stone |
| Dry/Wet |
Wet |
| Power Compatibility |
Standard Electric Supply |
| Product Warranty |
1 Year |
| Store Title |
WEKA DK42 Core Drill Motor |
| Manufacturer Part Number |
4244023 for listed 230 V DK42 variant |
| Nominal Power |
3900 W |
| Output Power |
3000 W |
| Manufacturer Drilling Diameter |
70 – 400 mm |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Electric |
| Drilling diameter |
Up to 20 in |
| Phase |
Three phase |
