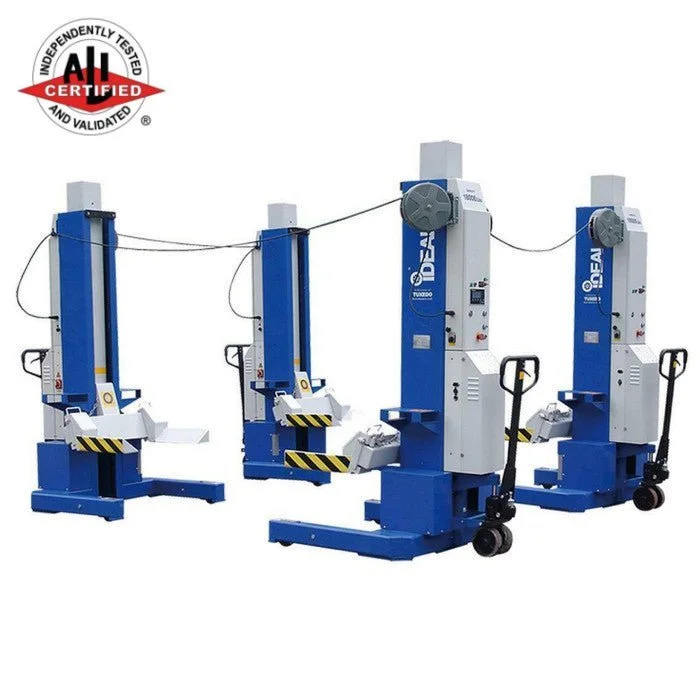

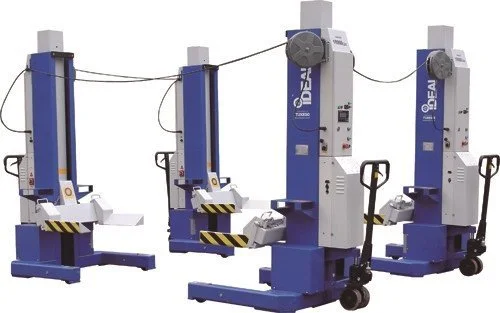

iDeal Lift MSC-18K-X-472 18,000lb. Per Mobile ALI Column Lifting System (Set of 4)
$45,030.00
iDeal Lift MSC-18K-X-472 18,000lb. Per Mobile ALI Column Lifting System (Set of 4) is part of our 4 post lifts – heavy-duty selection from iDeal Lift.
- Lifting capacity: 18000 lb
15 in stock
iDeal Lift MSC-18K-X-472 18,000lb. Per Mobile ALI Column Lifting System (Set of 4)
iDeal Lift MSC-18K-X-472 18,000lb. Per Mobile ALI Column Lifting System (Set of 4) is part of our 4 post lifts – heavy-duty selection from iDeal Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Massive 72,000 lbs. total capacity Handle the heaviest commercial vehicles and fleet service applications with confidence and safety
- True mobile flexibility Easily position with pallet jack, store compactly when not in use, maximize shop space utilization and bay efficiency

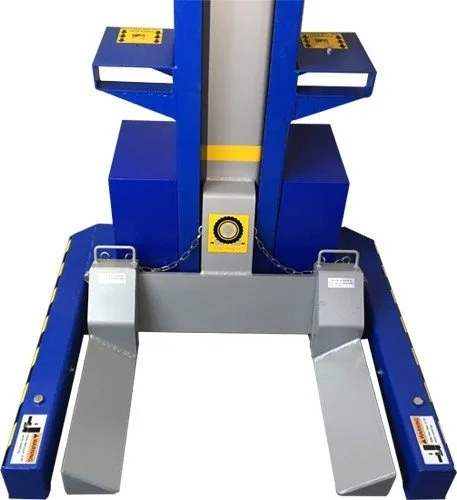

- Adjustable forks and column height Accommodate the widest range of wheel diameters, vehicle sizes, and wheelbase configurations
- Convenient operation from any column LCD control panel, U-shape wiring with retractable reels, simple intuitive operation for all skill levels
- Indoor setup operation Protected environment extends equipment life and ensures consistent performance

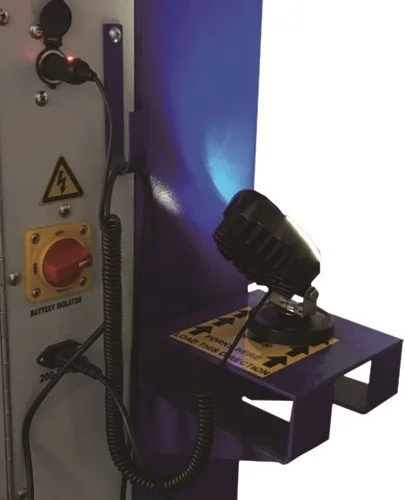

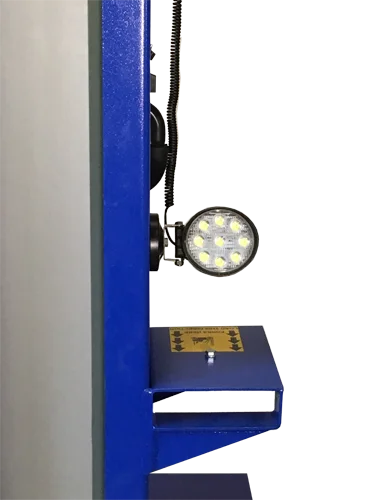

- New LED light with magnetic base Improved work area illumination for safer, more efficient service operations
- MSC-18K-X-236: 2-column set – 36,000 lbs. total capacity (ideal for lighter commercial vehicles, pickup trucks with accessories)
- 18,000 lbs. per column / 72,000 lbs. total capacity Engineered for the heaviest commercial vehicles
- 67.1" lifting height Ample working clearance for undercarriage service, brake work, suspension repairs
- Adjustable column height (88.6" to 155.5") Accommodates varying vehicle heights and ceiling clearances
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
iDeal Lift |
|---|---|
| MPN / Model |
MSC-18K-X-472 |
| Condition |
New |
| Capacity Per Column |
18,000 lbs. |
| Lifting Height |
67.1" |
| Column Height |
Min 88.6" / Max 155.5" |
| Column Width |
44.1" |
| Fork Adjustable Range |
12.6" – 22" |
| Fork Length |
17.9" |
| Fork to Column Clearance |
10" |
| Lifting / Lowering Time |
100 seconds / 60 sec at load of 18,000 lbs each column |
| Max Distance Between Columns |
32' 8" |
| Min Concrete Surface Strength |
3,000 Psi |
| Set-Up Operation |
Indoor |
| Charging Voltage Input |
100-140 V / 6oHz / Single Phase |
| Charging Voltage Output |
24VDC, Max 15 Amp |
| *Battery Type (Recommended) |
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 |
| Battery (Not Included) Specifications |
MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries |
Type 27 or 31 Series |
| Requirement Voltage Per Column |
Qty 2 12V or Qty 1 24V |
| Rating |
120 AMP / HR |
| Starting Current |
350 CCA – 500 CCA |
| Battery Cover Size |
14.56" x 8.27" x 13" |
| Battery Dimension |
14.2" x 7.5" x 11.8" Tall Max |
| Lifting capacity |
18,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
