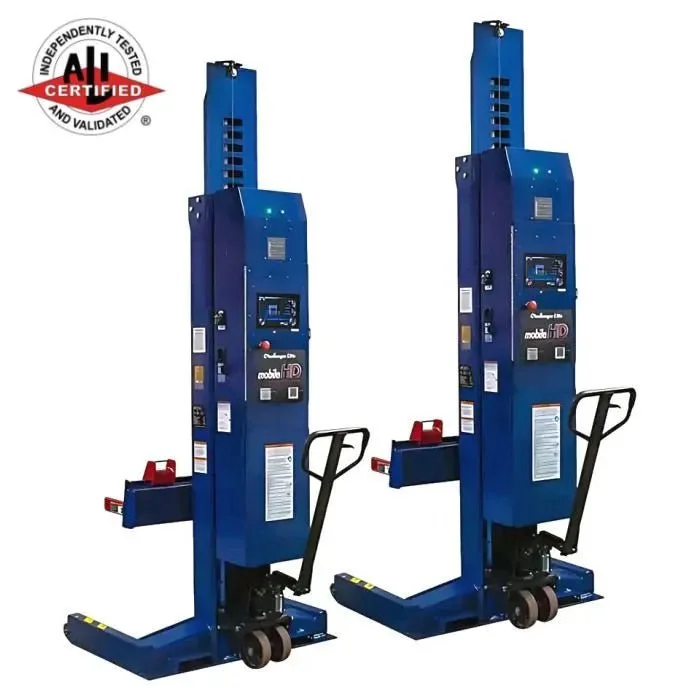

Challenger CLHM-190 ALI HD Mobile Column Lift – Single
$14,093.15
Challenger CLHM-190 ALI HD Mobile Column Lift – Single is part of our mobile column lifts selection from Challenger.
Challenger CLHM-190 ALI HD Mobile Column Lift – Single
Challenger CLHM-190 ALI HD Mobile Column Lift – Single is part of our mobile column lifts selection from Challenger.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 19,000 lbs. per column capacity expandable to 152,000 lbs. total capacity with 8-column configurations for handling the heaviest commercial vehicles
- Lift Capacity Per Column: 19,000 lbs.
- Maximum Lift Height (4+ columns): 69 inches (1,753 mm)
- Lift Speed at Max Load: 60 inches per minute (1,524 mm)
- Operating Voltage: 25 VDC Nominal
- Charger Voltage Required: 120 VAC @ 60 Hz / 1.3 Amps
- Weight of Lift Unit: 1,500 lbs. (685 kg)
- Footprint: 560 sq. inches (3,613 sq cm)
- Turning Radius: 47 inches (1,194 mm)
- Operating Peak Power: 4HP
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Challenger |
|---|---|
| MPN / Model |
CLHM-190 |
| Condition |
New |
| E Maximum Lift Height |
(4 or more units) |
| Maximum Lift Height |
(2 units – Normal Mode) |
| Ground Pressure for Each Lift |
(Max. Load) |
| Lift type |
Mobile Column Lifts |
