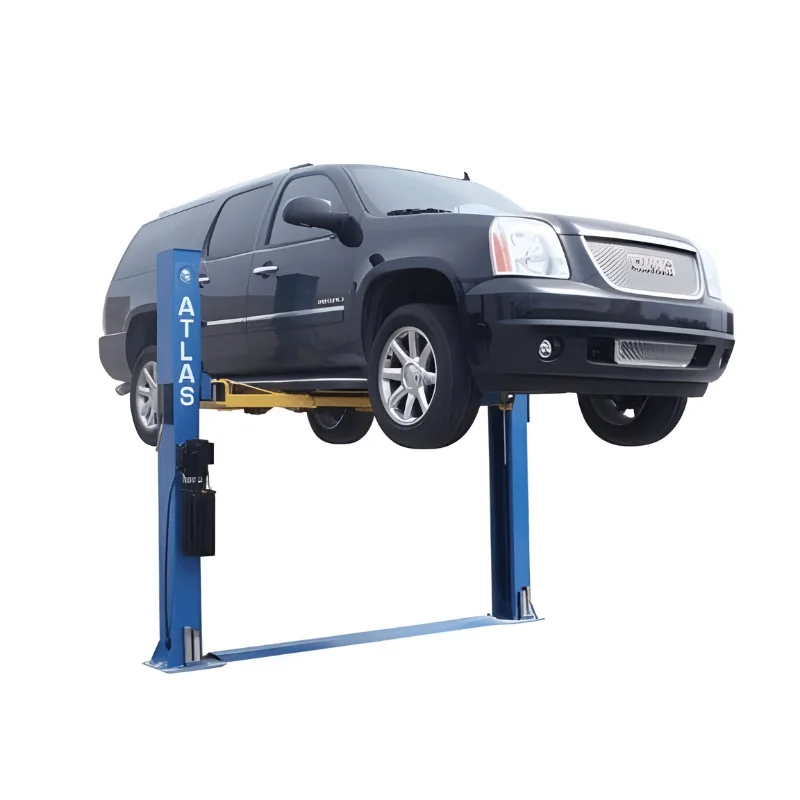

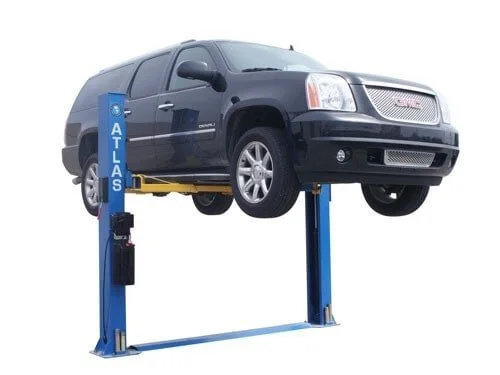

Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs
$3,099.00
Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 8000 lb
13 in stock
Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs
Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 8,000 lb capacity with base-plate design for low-ceiling installations
- 108-inch (9 ft) overall height installs in garages with ceilings as low as 9 feet 3 inches
- Super symmetric arms with automatic arm restraints and double lock system for maximum safety

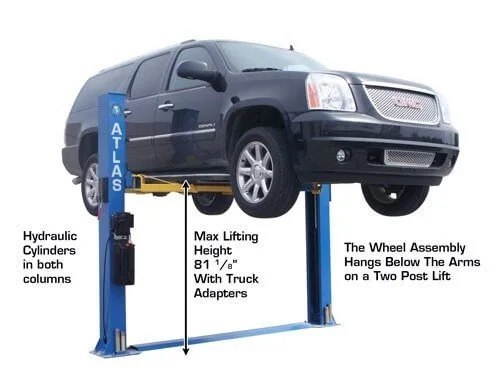

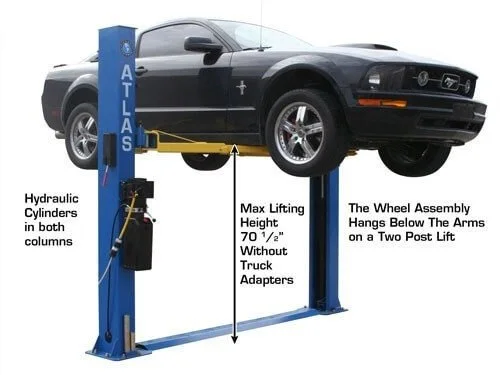

- Maximum lift height of 86.5 inches with adapters, 75.5 inches without adapters
- Free 12-piece truck adapter set (2", 3", and 6" sizes) included with all mounting hardware
- 8,000 lb. Capacity
- Super Symmetric Arms
- Base Plate Design
- Single-Point Release
- Double Lock System
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-BP8000 |
| Condition |
New |
| IMPORTANT: |
(Do this immediately after installation) |
| Capacity |
8,000 lbs |
| Lifting Time |
N/A |

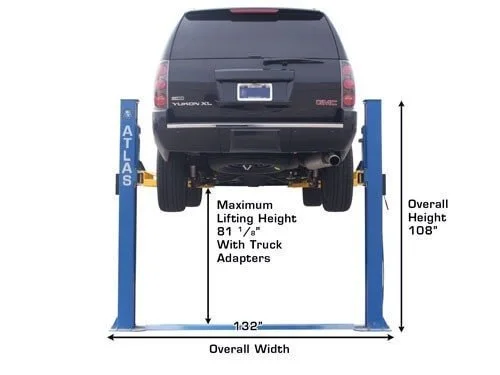

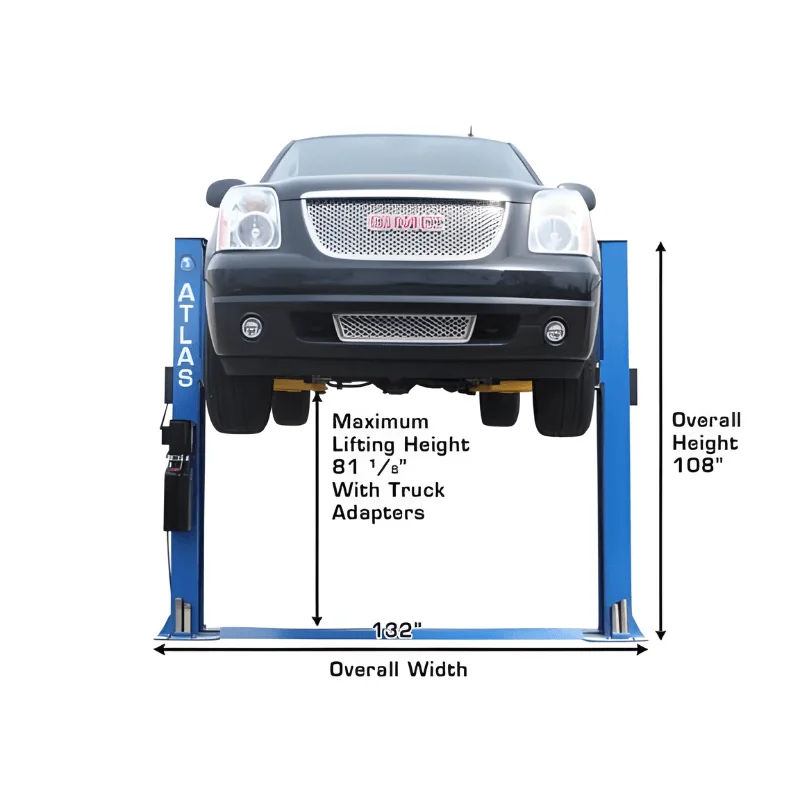

| Overall Height |
108" (9') |
| Overall Width |
132" (11') |

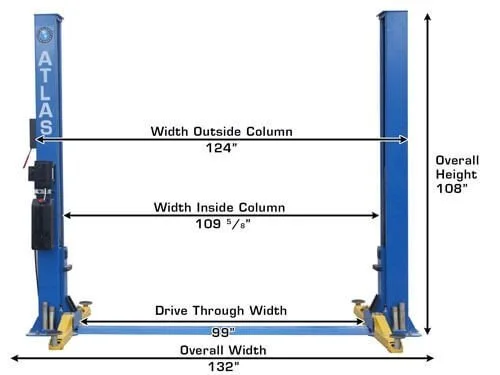

| Outside Column To Outside Column |
124" (10' 4") |

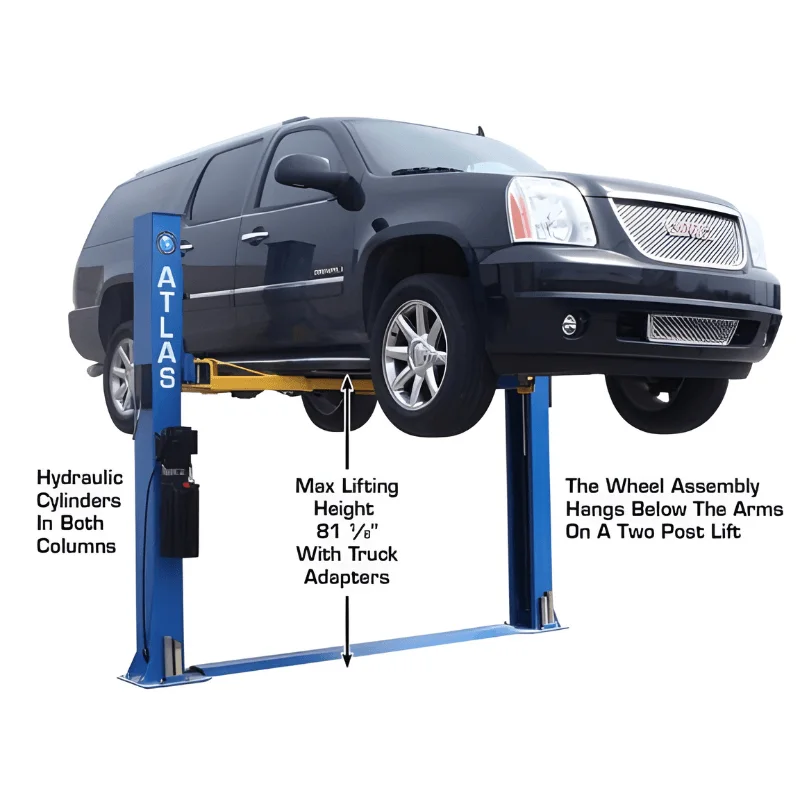

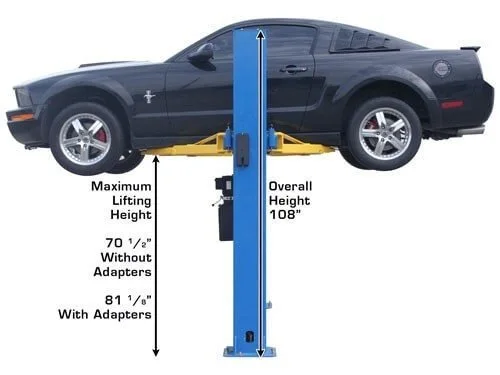

| Max Lift Height w/Adapters |
86.5" |

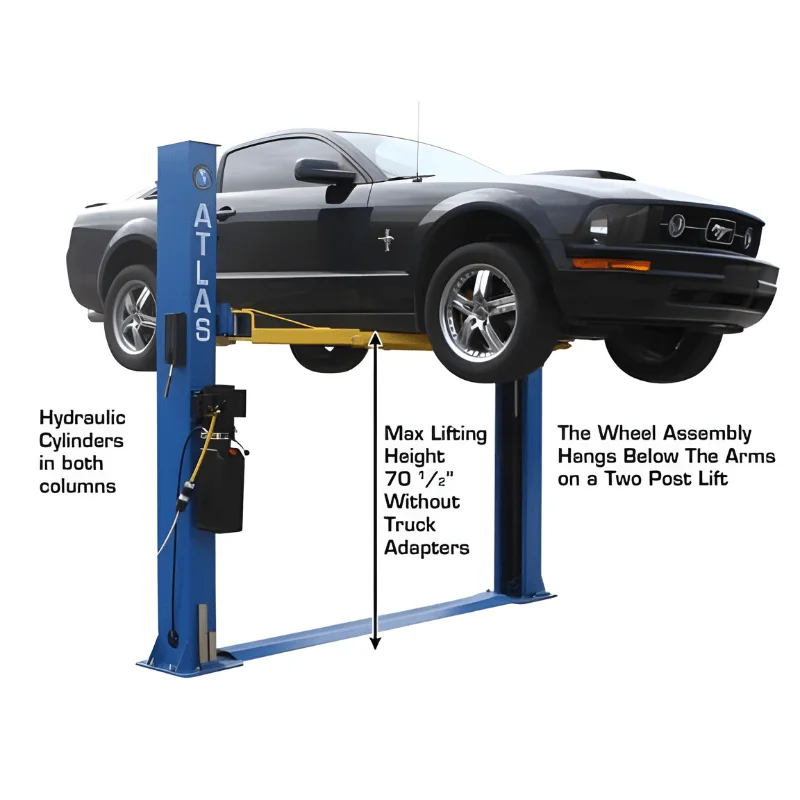

| Max Lift Height w/o Adapters |
75.5" |
| Minimum Arm Height |
4" |
| Base Plate Width |
11 1/2" |

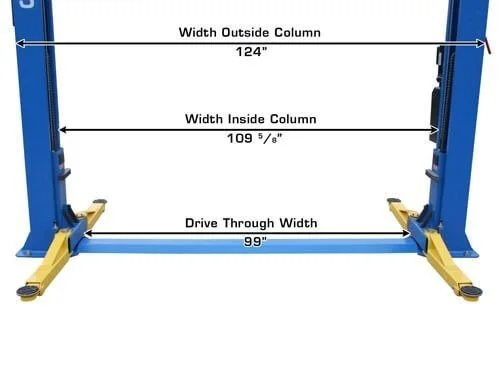

| Inside Column |
109 5/8" (9' 1 5/8") |
| Drive Thru |
99" (8' 3") |
| Column Size |
7 1/4" x 11" |
| Column Thickness of Steel |
6mm |
| Carriage Thickness of Steel |
6mm |
| Arms Thickness of Steel |
6mm |
| Cable Diameter |
.375" |
| Base of Lift |
17 1/2" x 17 3/4" |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Weight |
1,290 LB. |
| Lifting capacity |
8000 lb |
| Lift type |
2 Post Lifts |
