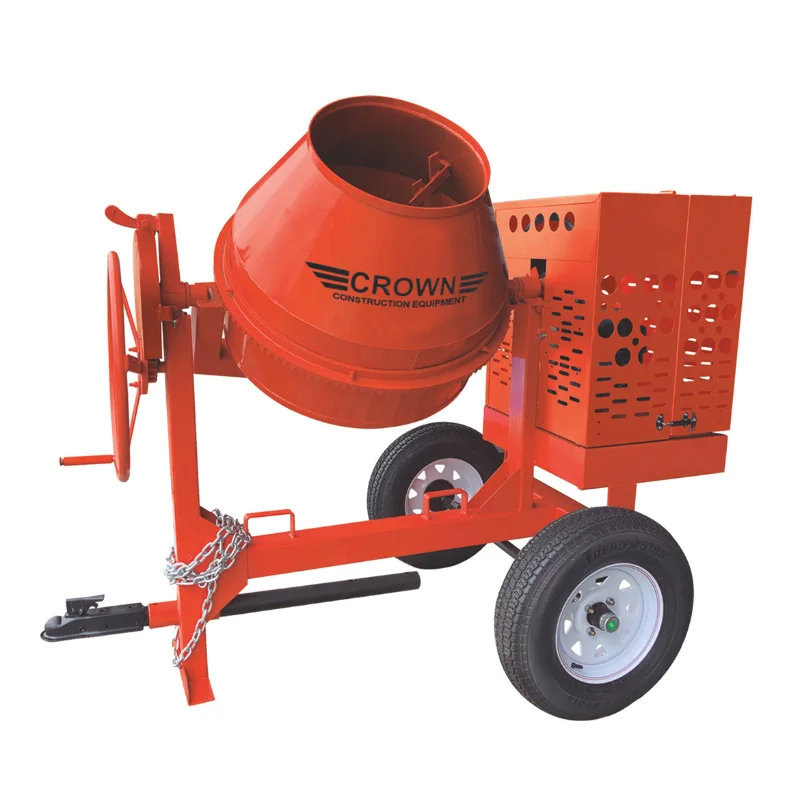

6 Cu Ft Concrete Mixer | Crown | Steel Drum | Baldor Electric | Towable
$5,433.00
6 Cu Ft Concrete Mixer | Crown | Steel Drum | Baldor Electric | Towable is part of our towable mixers selection from Crown Construction Equipment.
- Equipment type: Towable Concrete Mixer
6 Cu Ft Concrete Mixer | Crown | Steel Drum | Baldor Electric | Towable
6 Cu Ft Concrete Mixer | Crown | Steel Drum | Baldor Electric | Towable is part of our towable mixers selection from Crown Construction Equipment.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.

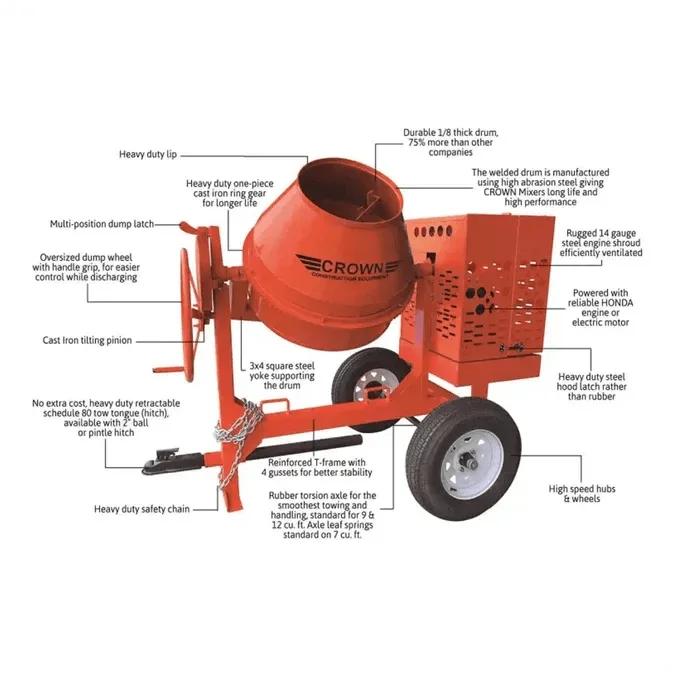

Equipment details
- 6 ft³ batch/output detail helps crews plan mix cycles
- Baldor electric motor power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Pinions & Gear Rings drive system for consistent material turnover
- Towable mixer format supports concrete crews moving between pours
- Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes
- Site utility or fuel: AC-powered
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 790 lb approx
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Crown Construction Equipment |
|---|---|
| Equipment type |
Towable Concrete Mixer |
| Horse Power |
1.5 HP manufacturer family spec; retailer SKU source lists 2.0 HP |
| Weight |
790 lb approx |
| Product Type |
Concrete Mixer |
| Product Subtype |
Highway |
| Model/Series |
C6 Series |
| Part # |
609842 |
| Frame |
High Strength |
| Mixing Blades |
Steel |
| Engine/Motor |
Baldor electric motor |
| Gearbox Drive Type |
Cast Iron |
| Drive |
Pinions & Gear Rings |
| Drum Diameter Opening |
18" |
| Batch Input |
0.5 – 1 bag |
| Batch Output |
6 ft³ |
| Charging Height |
30" |
| Batch Materials |
Concrete |
| Axle Type |
Heavy-Duty w/ High-Speed Taper Rolling Bearings |
| Wheel Size |
5.3" x 12" |
| Wheel Type |
Pneumatic |
| Stand Type |
High-Strength |
| Width (in) |
51.5" |
| Operating Length (in) |
71.5" |
| Towing Length (in) |
90.5" |
| Height (in) |
58.5" |
| Warranty |
1 year limited |
| Manufacturer family |
C6 Concrete Mixer |
| Manufacturer family capacity |
7 cu ft; Equipment Broker Group/retailer title lists 6 cu ft output/capacity |
| Batch Capacity Bags |
0.5-1 bag |
| Power |
Honda 5.5-8 HP gas or Baldor 1.5 HP electric |
| Drive System |
V-belt to gears |
| Tires |
4.8 x 12 pneumatic |
| Overall Width |
48" |
| Overall Length |
83" tow pole in |
| Overall Height |
58" drum down |
| Drum thickness |
1/8 in / 10 steel gauge |
| Included |
Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant |
| Power source |
Electric |
| Drum capacity |
6 cu ft |
| Drum material |
Steel |
