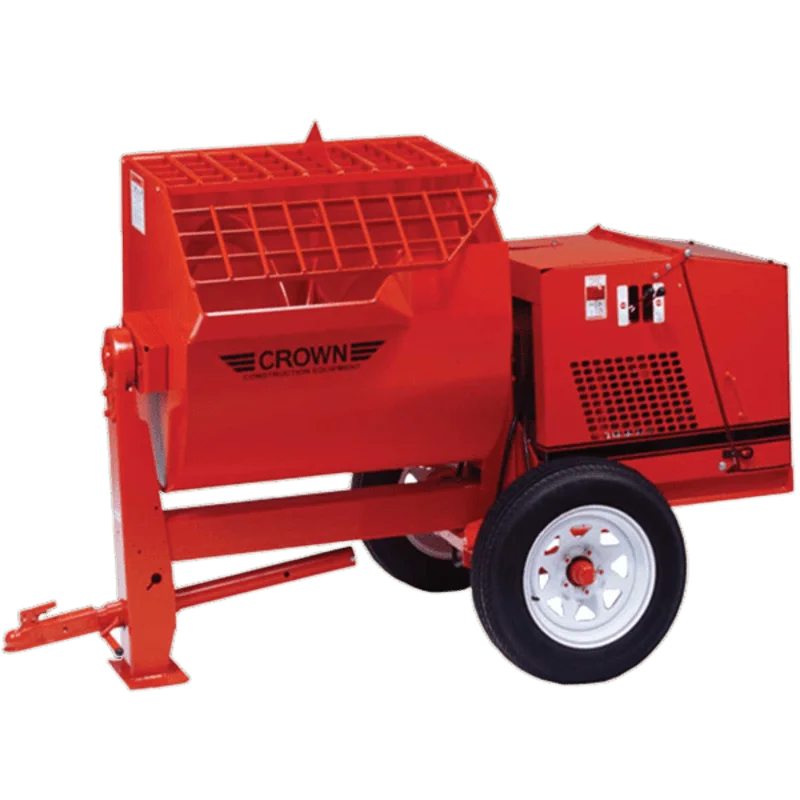

12 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Hydraulic Drive/Dump | Highway Towable
$12,500.00
12 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Hydraulic Drive/Dump | Highway Towable is part of our mortar mixers selection from Crown Construction Equipment.
- Equipment type: Mortar/Plaster Mixer
12 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Hydraulic Drive/Dump | Highway Towable
12 Cu Ft Mortar/Plaster Mixer Honda Gas Engine | Hydraulic Drive/Dump | Highway Towable is part of our mortar mixers selection from Crown Construction Equipment.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 12 ft³ batch/output detail helps crews plan mix cycles
- Honda GX390 / Honda gas engine power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Hydraulic drive/dump drive system for consistent material turnover
- Built for mortar, plaster, stucco, grout, and masonry workflows
- Paddle mixing format is suited to repeated contractor batches
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 1300 lb max
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Crown Construction Equipment |
|---|---|
| Equipment type |
Mortar/Plaster Mixer |
| Horse Power |
13 HP |
| Weight |
1300 lb max |
| Product Type |
Mortar/Plaster Mixer |
| Product Subtype |
Highway |
| Model/Series |
12SH Series |
| Part # |
609542 |
| Frame |
High Strength |

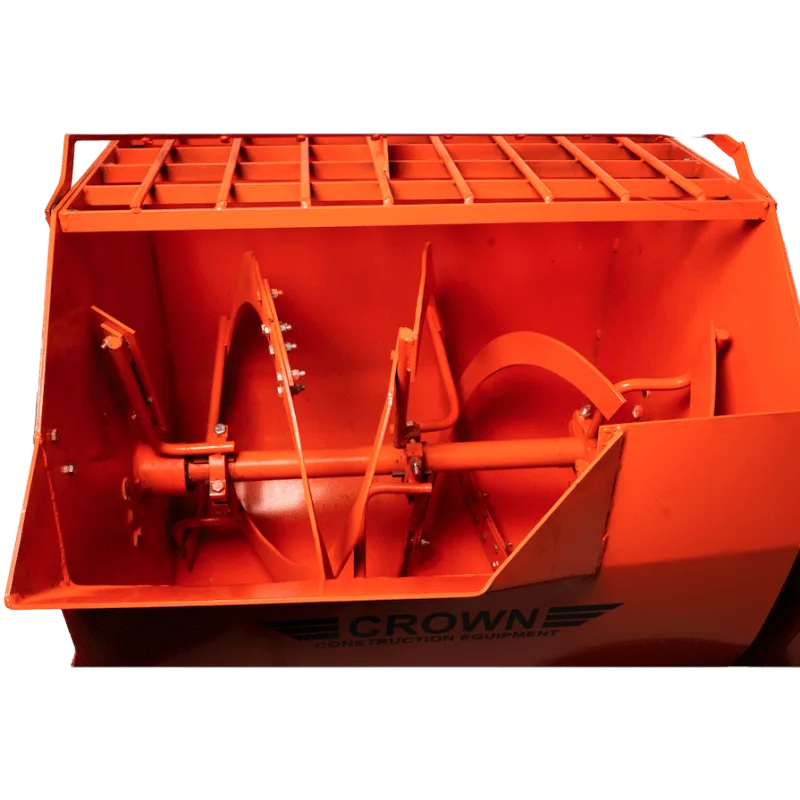

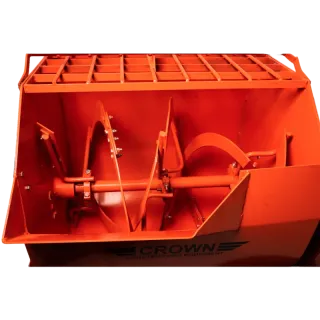

| Mixing Blades |
Regular Paddles |
| Engine/Motor |
Honda GX390 / Honda gas engine |
| Gearbox Drive Type |
Hydraulic |
| Drive |
Hydraulic drive/dump |
| Batch Input |
3.5 – 4 bags |
| Batch Output |
12 ft³ |
| Charging Height |
58" |
| Batch Materials |
Mortar, Plaster, Grout |
| Axle Type |
Rubber Torsion Suspension System |
| Wheel Size |
B78 x 13" |
| Wheel Type |
Pneumatic |
| Stand Type |
High-Strength |
| Width (in) |
52.5" |
| Operating Length (in) |
91.75" |
| Towing Length (in) |
112.25" |
| Height (in) |
57.5" |
| Warranty |
1 year limited |
| Manufacturer family |
12SH/S12SH Hydraulic Mortar Mixer |
| Batch Capacity Bags |
3.5-4 bags |
| Power |
Honda 13 HP gas or Baldor 5 HP electric |
| Overall Height |
57.5" |
| Overall Width |
52.5" |
| Overall Length |
91.75" / 112.25" tow pole in/out |
| Tires |
175/70R13 pneumatic |
| Spiral Blade Option |
Yes |
| Highway Towable |
Yes |
| Included |
Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant |
| Power source |
Gasoline |
| Drum capacity |
12 cu ft |
| Drum material |
Steel |
