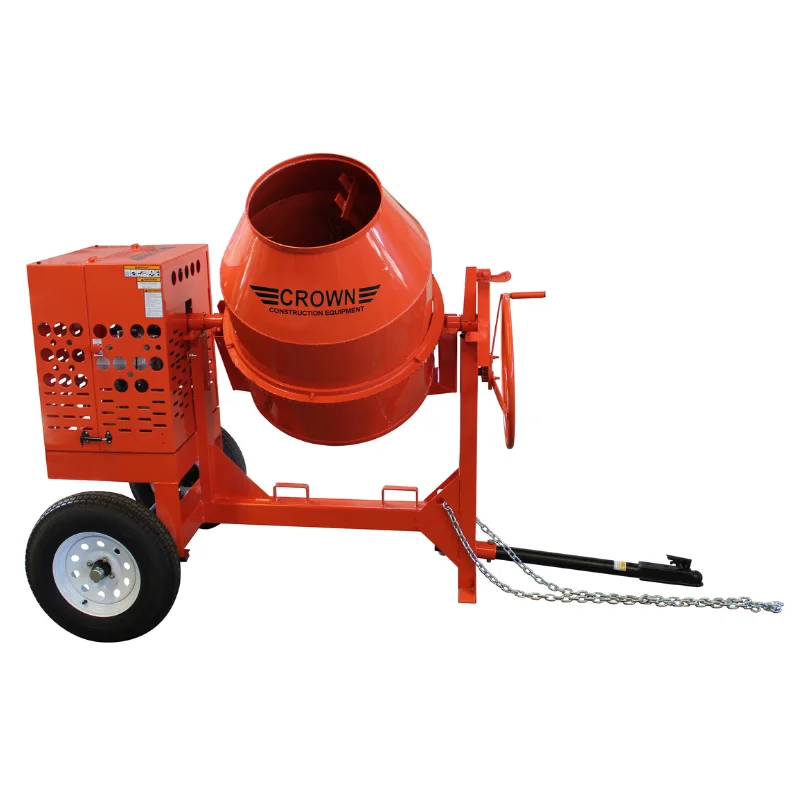

12 Cu Ft Concrete Mixer | Crown | Steel Drum | Honda Gas | Towable
$6,600.00
12 Cu Ft Concrete Mixer | Crown | Steel Drum | Honda Gas | Towable is part of our towable mixers selection from Crown Construction Equipment.
- Equipment type: Towable Concrete Mixer
12 Cu Ft Concrete Mixer | Crown | Steel Drum | Honda Gas | Towable
12 Cu Ft Concrete Mixer | Crown | Steel Drum | Honda Gas | Towable is part of our towable mixers selection from Crown Construction Equipment.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 12 ft³ batch/output detail helps crews plan mix cycles

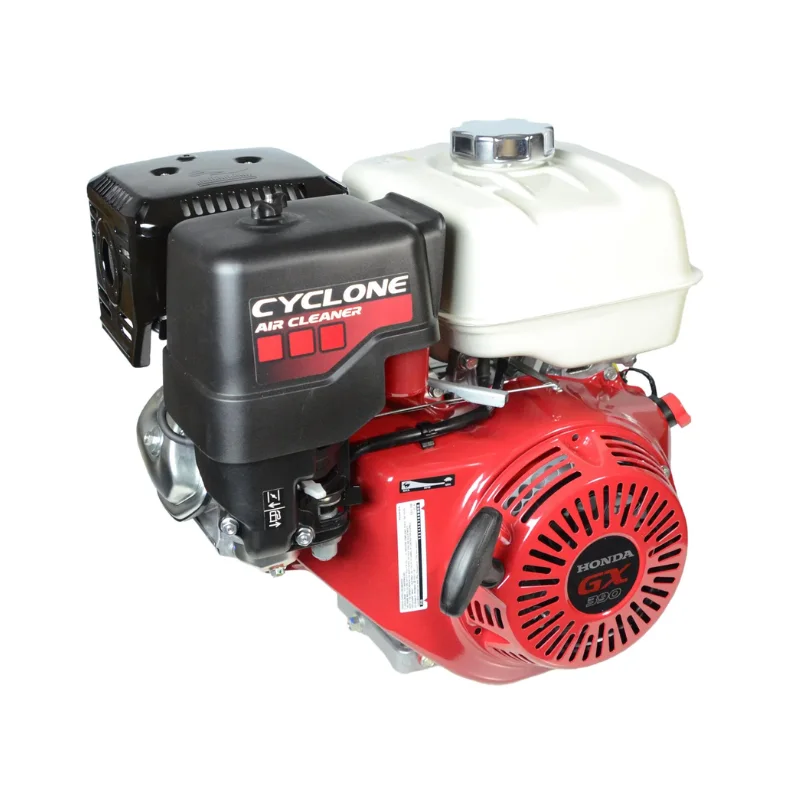

- Honda GX390 / Honda gas engine power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- V-belt to gears drive system for consistent material turnover
- Towable mixer format supports concrete crews moving between pours
- Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 895 lb approx
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Crown Construction Equipment |
|---|---|
| Equipment type |
Towable Concrete Mixer |
| Horse Power |
13 HP |
| Weight |
895 lb approx |
| Product Type |
Concrete Mixer |
| Product Subtype |
Highway |
| Model/Series |
C12 Series |
| Part # |
609492 |
| frame |
) |
| Mixing Blades |
Steel |
| Engine/Motor |
Honda GX390 / Honda gas engine |
| Drive Type |
V-Belt to gears |
| Batch Input |
1.5 – 2 bags |
| Batch Output |
12 ft³ |
| Charging Height |
43.5" |
| Batch Materials |
Concrete |
| Axle Type |
Rubber Torsion Suspension System |
| Wheel Size |
B78 x 13" |
| Wheel Type |
Pneumatic |
| Forklift Pockets |
Yes (2 |
| Stand Type |
High-Strength |
| Removable Drum |
Yes (the drum can be interchanged with other drum sizes using the same |
| Width (in) |
51" |
| Operating Length (in) |
80" |
| Towing Length (in) |
102" |
| Height (in) |
62" |
| Warranty |
1 year limited |
| Manufacturer family |
C12 Concrete Mixer |
| Batch Capacity Bags |
1.5-2 bags |
| Power |
Honda 13 HP gas or Baldor 2 HP electric |
| Drive System |
V-belt to gears |
| Tires |
175/70R13 pneumatic |
| Overall Width |
54" |
| Overall Length |
83" tow pole in |
| Overall Height |
69" drum down |
| Drum thickness |
1/8 in / 10 steel gauge |
| Included |
Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant |
| Power source |
Gasoline |
| Drum capacity |
12 cu ft |
| Drum material |
Steel |
