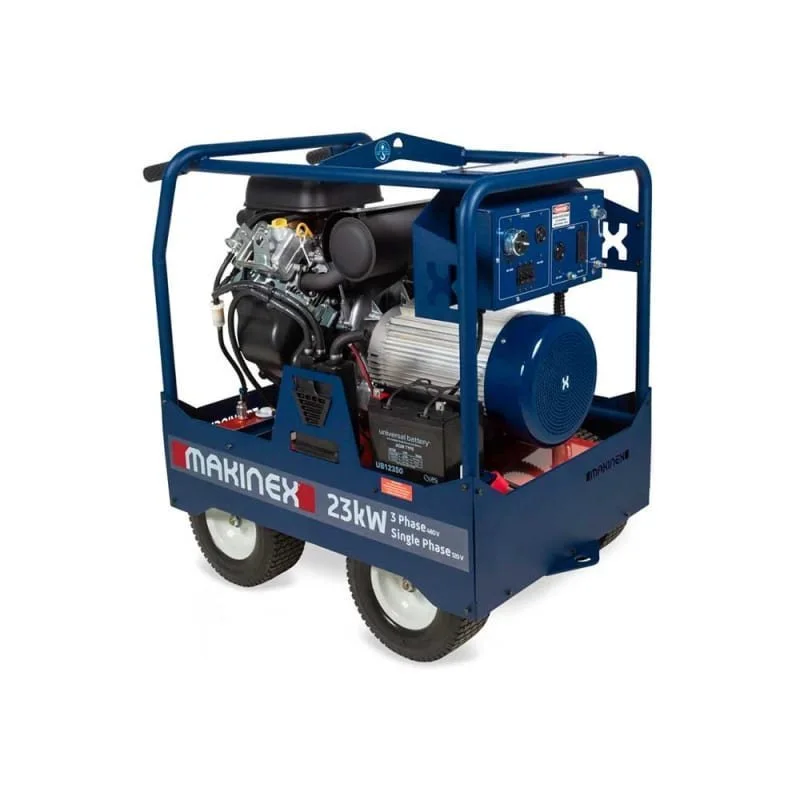

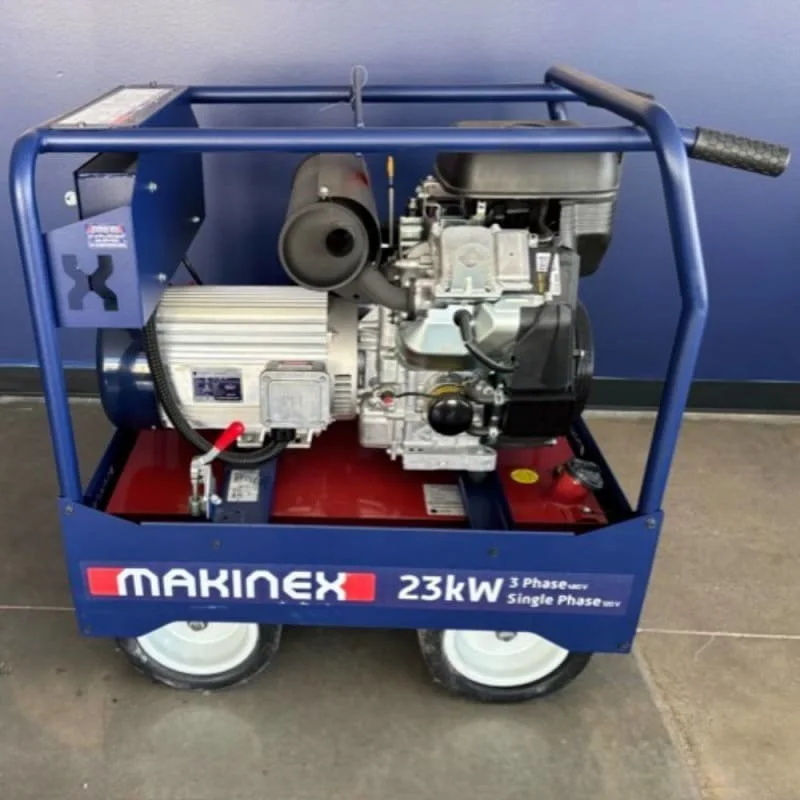

Generator 23kW | VanGuard | 480V
$18,458.77
Generator 23kW | VanGuard | 480V is part of our portable generators selection from Makinex.
- Voltage: 110V single phase; 480V three phase
Generator 23kW | VanGuard | 480V
Generator 23kW | VanGuard | 480V is part of our portable generators selection from Makinex.
Match generator output to the loads you need to support, and check fuel, voltage and phase before selecting a model. Installation and connection requirements depend on the exact configuration.
Equipment details
- Compact 480V three-phase generator for concrete and flooring equipment.

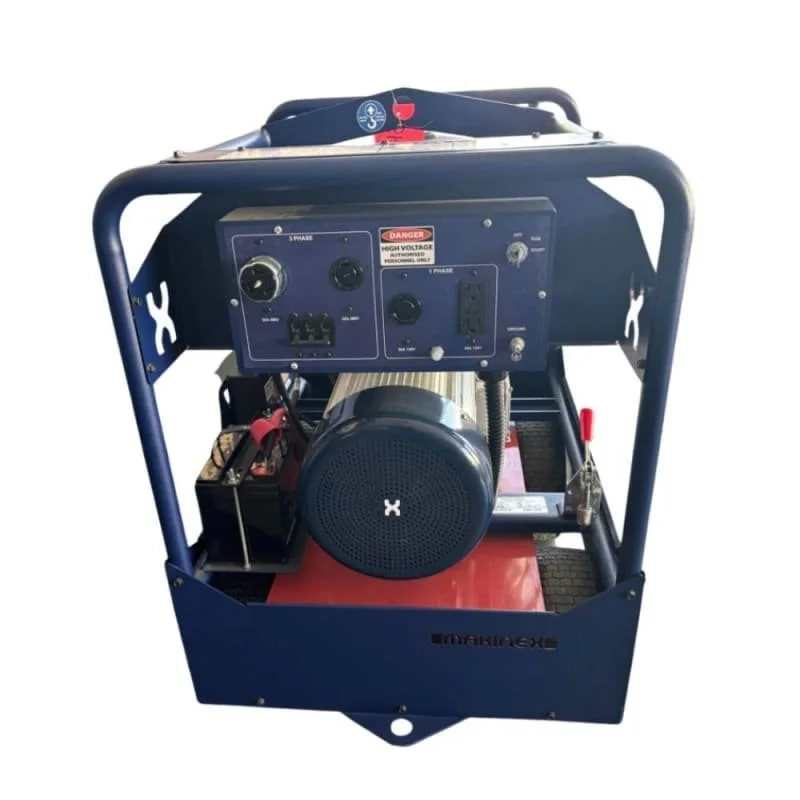

- Independent 110V auxiliary and 480V circuits allow simultaneous mixed-load use.

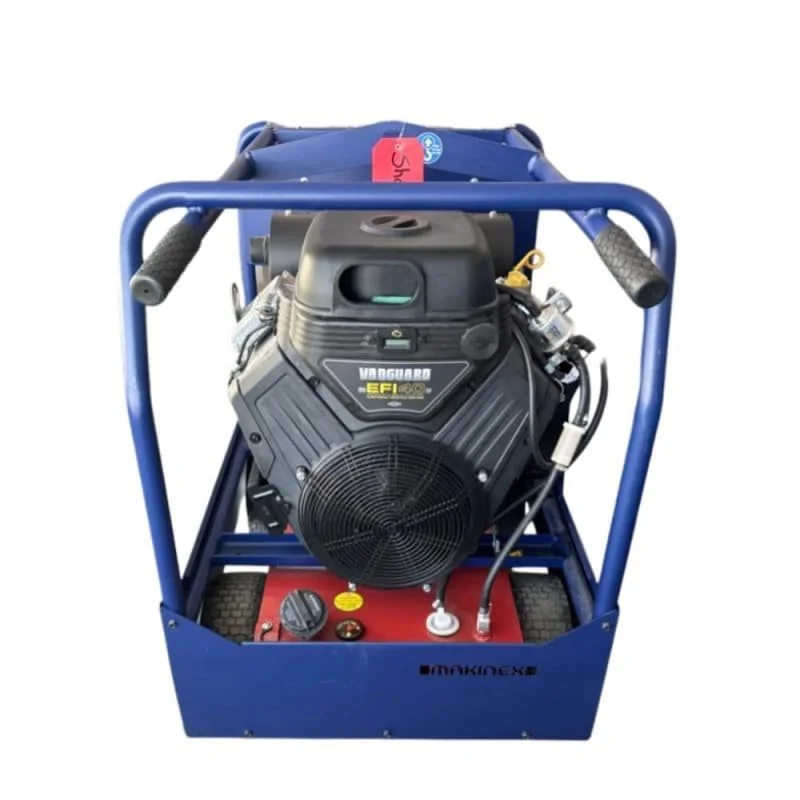

- Vanguard V-Twin engine and radial flux alternator support high output in a compact frame.
- Four-wheel portable design fits into tighter work areas than tow-behind units.
- 13.2 gal tank and 573 lb dry weight support commercial jobsite planning.
- No voltage selection is needed for the appropriate outlets.
- Site utility or fuel: 110V single phase; 480V three phase
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Makinex |
|---|---|
| MPN / Model |
GPE211037 |
| Condition |
New |
| Manufacturer Product Code |
GEN-23P-MS-480 |
| Equipment Type |
Portable dual-phase gasoline generator |
| Output Class |
23 kW |
| Voltage |
110 V single phase; 480 V three phase |
| Frequency |
60 Hz |
| Three-Phase Power |
Max 25 kW / continuous 22.5 kW |
| Single-Phase Auxiliary Power |
Max 2.2 kW / continuous 2 kW |
| Three-Phase Current |
Max 30 A / continuous 27 A |
| Single-Phase Auxiliary Current |
Max 20 A / continuous 18 A |
| Engine Type |
Twin-cylinder air-cooled petrol |
| Engine Model |
Vanguard 61G277 |
| Displacement |
993 cc |
| Starting System |
Electric key start |
| Fuel Economy |
1.59 gal/hr at 50% load |
| Fuel Tank |
13.2 gal |
| Noise Level |
72 dB no-load at 7 m |
| Dry Weight |
573 lb |
| Dimensions |
43 x 25 x 40 in |
| Warranty |
3-year warranty listed by Makinex for 23kW generators |
| Phase |
Single phase ,Three phase |
